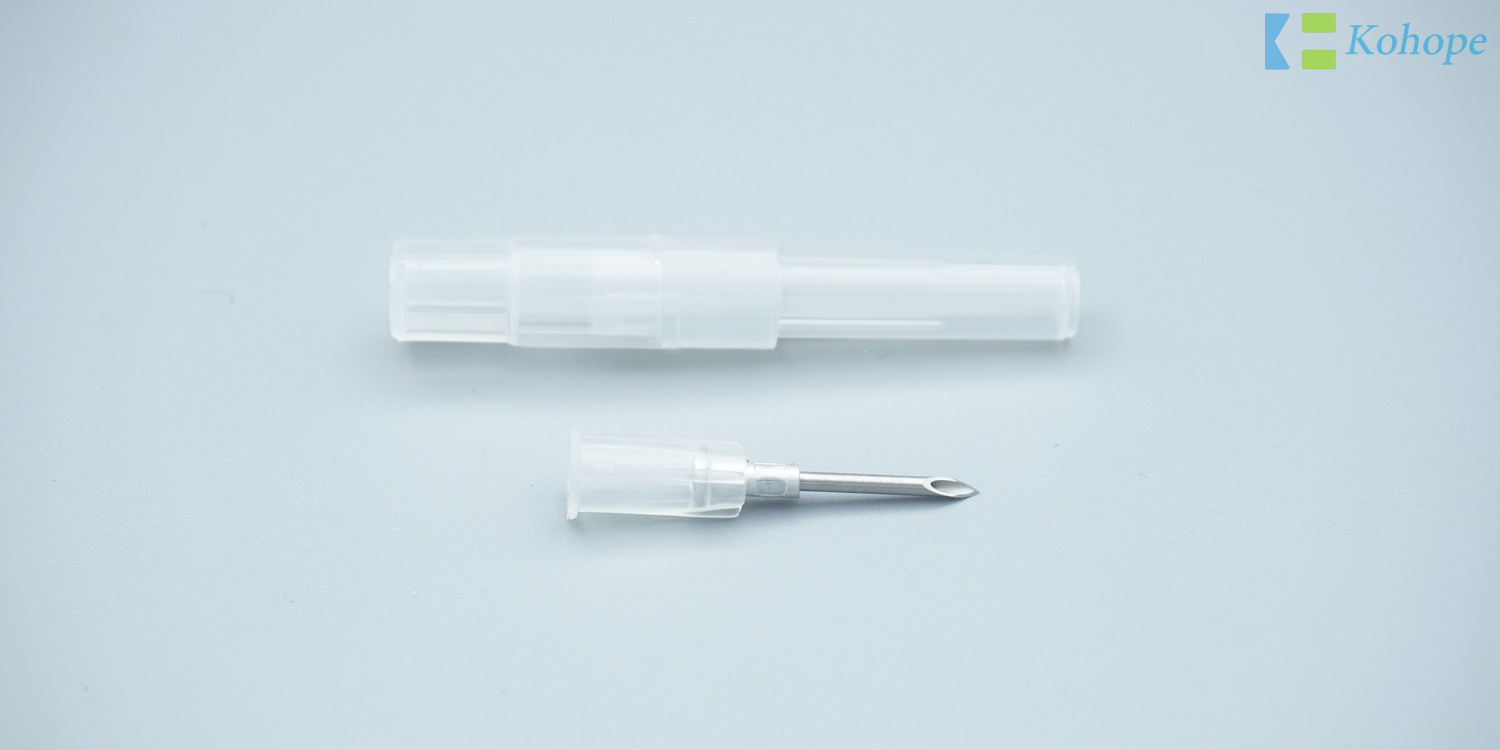

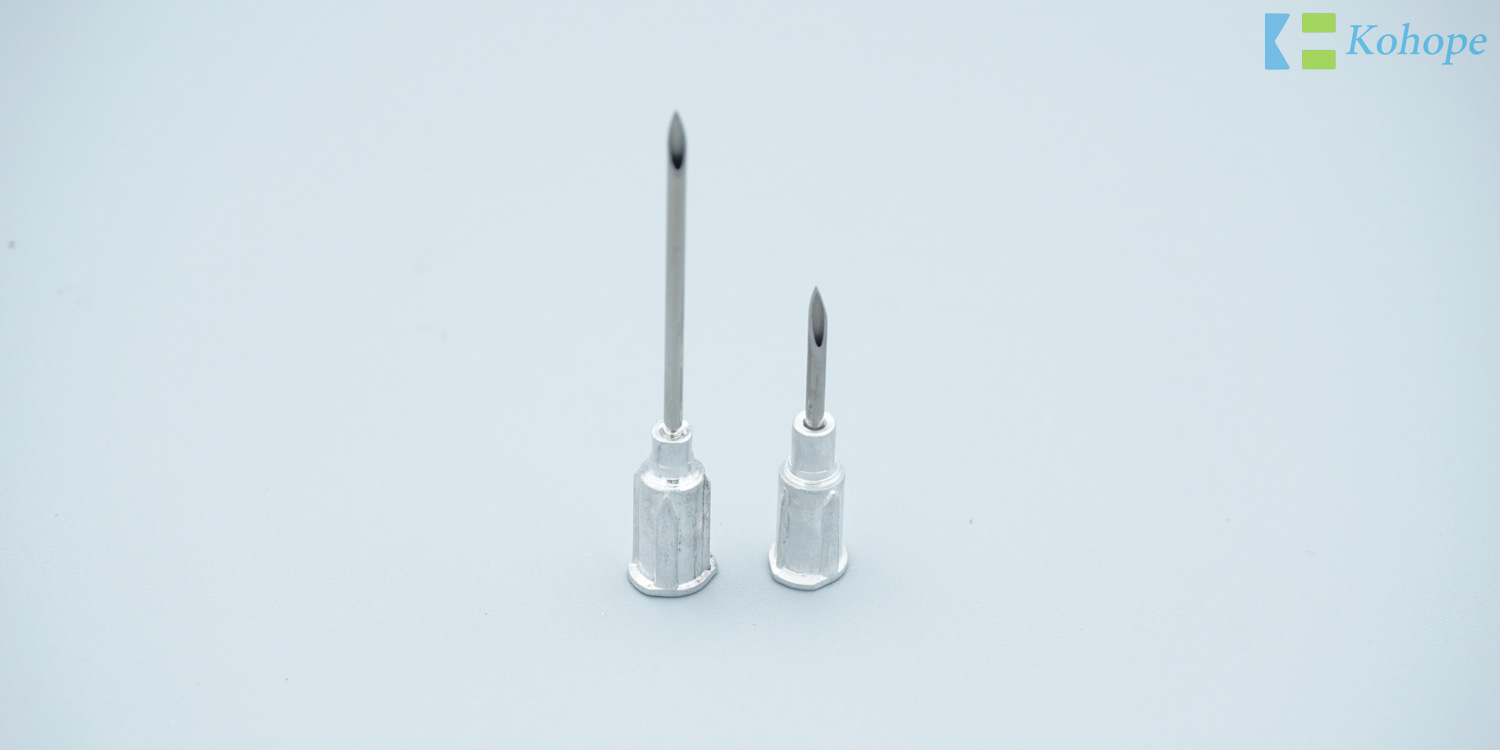

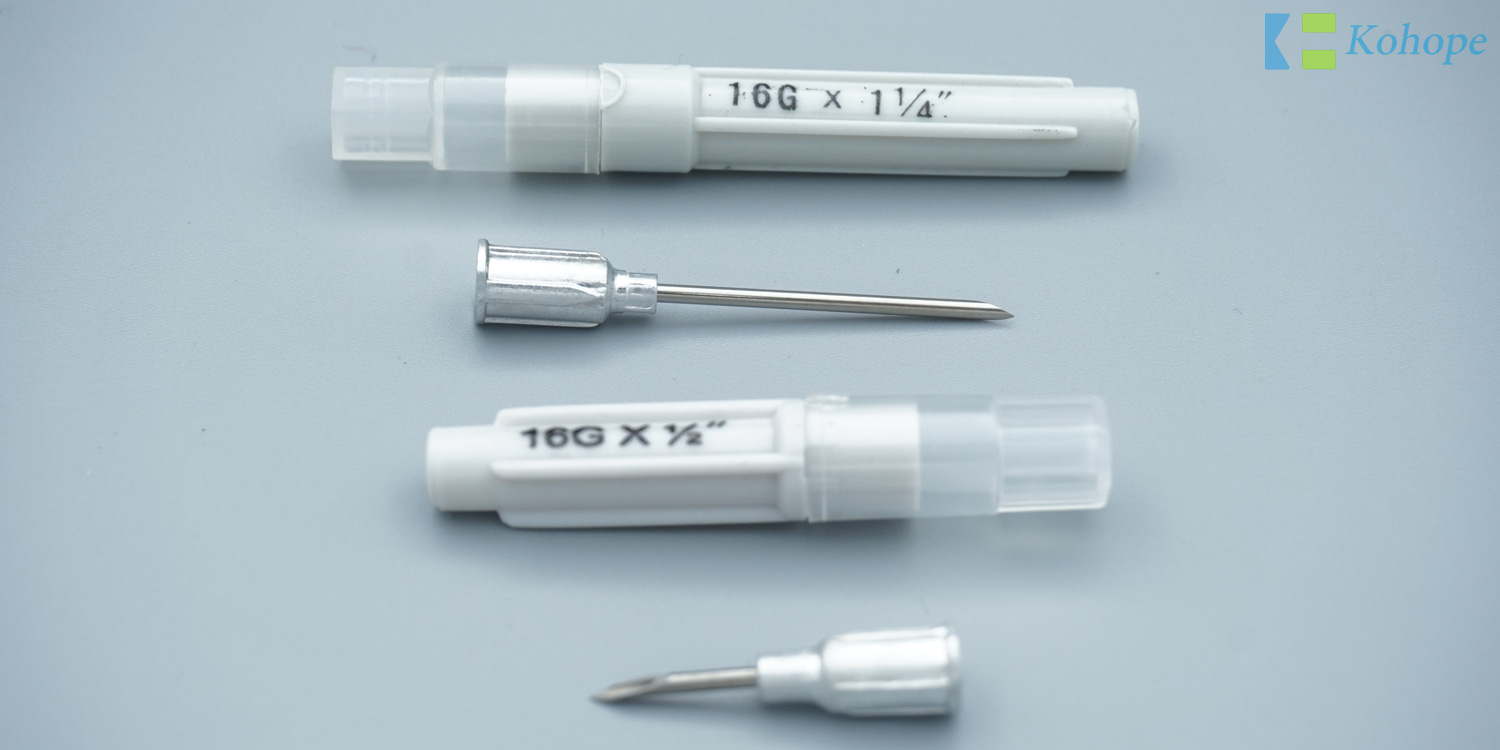

The veterinary needles are made up of a hub, needle tube, protective cap. The vet needles are often employed jointly with infusion/transfusion sets or syringes for drug infusion and blood collection. The veterinary hypodermic needles can be used repeatedly. There are different sizes of veterinary needles for different uses.
| SIZE | COLOR | LENGTH | ID | BEVEL ANGLE | ||||||||||
| OD(mm) | GAUGE | COLOR-CODE | 1/3 | 1/2 | 5/8 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | RW | TW | Long bevel | Short bevel |
| 0.40 | 27G | grey | | | ||||||||||
| 0.45 | 26G | brown | | | ||||||||||
| 0.50 | 25G | orange | | |||||||||||
| 0.55 | 24G | purple | | |||||||||||
| 0.60 | 23G | blue | | |||||||||||
| 0.70 | 22G | black | | |||||||||||
| 0.80 | 21G | green | | |||||||||||
| 0.90 | 20G | yellow | ||||||||||||
| 1.10 | 19G | cream | ||||||||||||
| 1.20 | 18G | pink | ||||||||||||
| 1.60 | 16G | white | white | white | white | |||||||||
| 1.80 | 15G | blue grey | ||||||||||||
| 2.10 | 14G | pale green | ||||||||||||
| Remark: normal size in the above table, we can also make a special size as clients' request. | ||||||||||||||
Main material: stainless steel Cannula, Silicone oil.
Characteristic:
Thick wall needle tube with exceptional stability and elasticity
Autoclavable
Needles and boxes are color-coded for easy identification
Individual and sets packaging are available
Sealed Needle hub: copper hub, aluminum hub
High sharp veterinary bevel ensures longer life, reduces coring and painless skin penetration.
Can be used repeatedly
Sterile, non-toxic, pyrogen-free
Product Conformance:
In compliance with European Medical Device Directive 93/42/EEC(CE Class: lla)
Quality Assurance:
Manufacturing process is in compliance with ISO 13485 and ISO 9001 Quality System.
