Kohope, as a custom needle manufacturer, has an independent research and development team. For needles of special models or specifications, we can develop and custom medical needles according to the specific needs of clients. Such as Anesthesia Needles, Alive Tissue Examination Needles, Alcohol Needles, Inducing Needles, and so on.
| TYPE | SIZE | COLOR | LENGTH | ID | |||||||
| OD(mm) | GAUGE | COLOR CODE | 3/4 | 2 1/2 | 3 1/6 | 3 1/2 | 4 | 4 1/3 | RW | TW | |
AN-E Extradural Anesthesia Needles | 0.80 | 21G | green | | |||||||
| 0.90 | 20G | yellow | | ||||||||
| 1.00 | 19G | cream | | ||||||||
| 1.20 | 18G | pink | | | |||||||
| 1.60 | 16G | white | white | white | white | white | |||||
| 1.80 | 15G | blue grey | | ||||||||
AN-N Nerve Anesthesia Needles | 0.50 | 25G | orange | ||||||||
| 0.55 | 24G | purple | |||||||||
| 0.60 | 23G | blue | |||||||||
| 0.70 | 22G | black | |||||||||
| 0.80 | 21G | green | | ||||||||
| 0.90 | 20G | yellow | |||||||||
AN-X Pediatric Anesthesia Needles | 0.50 | 25G | orange | ||||||||
| 0.55 | 24G | purple | |||||||||
| Remark: normal size in the above table, we can also make a special size as clients' request. | |||||||||||
Use cannula construction, inner puncturing needle with an inverse angle for less hurt on tissue.
Outer cannula: cutting end with an inclined blade, less pain, less friction, quicker cutting.
Graduation on outer cannula let the doctor know exact position puncturing reach, then sampling
Little hurt, safe, effective.
| SIZE | COLOR | LENGTH | ID | ||
| OD(mm) | GAUGE | COLOR CODE | 3 1/2 | RW | TW |
| 1.2 | 18G | pink | | | |
| 1.6 | 16G | white | white | white | |
| 1.8 | 15G | blue grey | | ||
| 2.1 | 14G | pale green | |||
| 2.4 | 13G | purple | |||
| Remark: normal size in the above table, we can also make a special size as clients' request. | |||||
Solid 3-edge puncturing needlepoint, sharp, a little hurt.
Multi-hole at needlepoint, easy for medicine solution injected through different direction, uniformity.
| SIZE | COLOR | LENGTH | ID | ||
| OD(mm) | GAUGE | COLOR CODE | 6 | RW | TW |
| 0.8 | 21G | green | |||
| 0.9 | 20G | yellow | |||
| 1.1 | 19G | cream | | ||
| 1.2 | 18G | pink | | ||
| Remark: normal size in the above table, we can also make a special size as clients' request. | |||||
Unique designed needle hub for the convenience of operation and exact puncture.
With specially-designed needlepoint, the doctor can control resistance freely for exact and smooth puncture
Smooth inducing without block
| SIZE | COLOR | LENGTH | ID | ||
| OD(mm) | GAUGE | COLOR CODE | 6 | RW | TW |
| 0.8 | 21G | green | |||
| 0.9 | 20G | yellow | |||
| 1.1 | 19G | cream | |||
| 1.2 | 18G | pink | | ||
| Remark: normal size in the above table, we can also make a special size as clients' request. | |||||
Main material: PP, PC, ABS, SUS304 stainless Steel Cannula, Silicone oil.
Characteristic:
Anesthesia Needles
Extradural anesthesia needles (AN-E)
Bend and round-smooth needlepoint can greatly reduce the risks of breaking the hard spinal film and assure the cannula entering successfully.
Graduation on the cannula, convenient for control.
Needle hub with wings, convenient to behold and needle sticking into easily.

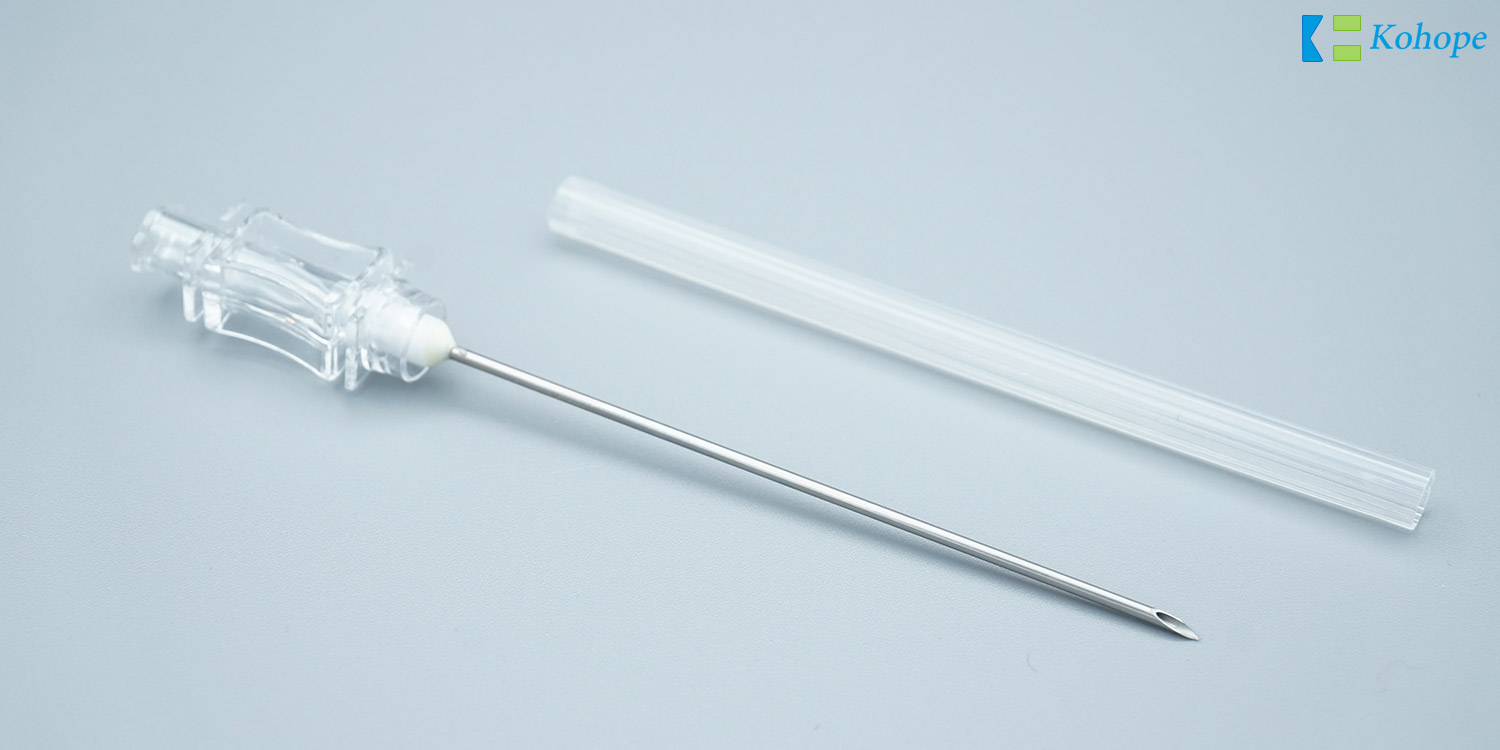

Nerve anesthesia needles (AN-N)
Used for part anesthesia, ease pain, or injecting local anesthetic when in an emergency.
For single use only, avoid cross-infection.
Pediatric anesthesia needles (AN-X)
Bend and round-smooth needle tip can greatly reduce the risks of breaking the hard spinal film and assure the cannula entering successfully.
Graduation on the cannula, convenient for control
Needle hub with wings, convenient to behold and needle sticking into easily.
Small OD, greatly reduces the hurt on pediatric patients.
The soft tube connecting with the needle hub, Easily use and safe.
Alcohol Needles
Solid 3-edge puncturing needlepoint, sharp, a little hurt.
Multi-hole at needlepoint, easy for medicine solution injected through different direction, uniformity.
Inducing Needles
Unique designed needle hub for the convenience of operation and exact puncture
With specially-designed needlepoint, the doctor can control resistance freely for exact and smooth puncture
Smooth inducing without block
Product Conformance:
In compliance with European Medical Device Directive 93/42/EEC
Quality Assurance:
The manufacturing process is in compliance with ISO 13485 and ISO 9001 Quality System.
