Description

Global Quality You Can Trust

Manufacturing Excellence

15 Years of Industry Leadership

Specialized Experience: 15 years dedicated to veterinary medical device manufacturing
Production Capacity: 50 million units annually across 8 fully automated production lines
R&D Team: 30+ professionals including materials engineers, process engineers, and quality specialists
Facility: 10,000 sqm state-of-the-art manufacturing facility with Class 100 cleanroom meeting GMP standards

Comprehensive International Certifications

ISO 13485: Medical device quality management system covering design, production, and sales
CE Certification: EU Medical Device Directive compliance for European market access
FDA Registration: US Food and Drug Administration approval for American market distribution
GMP Compliance: Good Manufacturing Practice standards ensuring standardized production
ISO 14001: Environmental management system for sustainable, eco-friendly production

Technical Specifications

Precision Manufacturing Parameters

Gauge	Outer Diameter (mm)	Inner Diameter (mm)	Wall Thickness (mm)	Length Options (mm)	Flow Rate (ml/min)	Target Animals	Primary Applications
18G	1.27	1.07	0.10	25/32/45/51	105-120	Large dogs (>25kg), Horses	Emergency high-volume infusion, Hemodialysis
20G	0.91	0.73	0.09	25/32/45	65-75	Medium dogs (10-25kg), Sheep	Routine fluid therapy, Mass vaccination
22G	0.72	0.56	0.08	25/32	35-45	Small dogs (5-10kg), Adult cats	Daily infusion, Antibiotic injection
24G	0.55	0.41	0.07	19/25	20-25	Puppies, Kittens (<5kg)	Precision drug delivery, Nutritional support
26G	0.45	0.33	0.06	16/19	10-15	Small cats, Birds, Reptiles	Minimally invasive therapy, Insulin injection

Advanced Technology Features

Triple-Sharpened Needle Tip: Laser sharpening + mechanical grinding + polishing process reduces penetration force by 35%
Silicone Coating Technology: Special needle surface coating reduces injection resistance by 40%
Memory Elastic Catheter: Medical-grade TPU material with automatic shape recovery after bending
Dual-Color Flashback Chamber: Transparent + colored design for quick confirmation of successful venipuncture

Core Manufacturing Advantages

Production Excellence

Advanced Equipment: 10 precision injection molding machines from German ARBURG and Japanese Sumitomo
Automated Assembly: 8 fully automated production lines with 80,000 units daily capacity per line
Laser Welding: Ensures robust catheter-to-hub connection integrity
EO Sterilization: In-house sterilization facility with controlled sterilization cycles

Quality Control System

Raw Material Testing: 304 stainless steel spectral analysis, PVC/TPU material physical property testing
Process Monitoring: Hourly sampling with 100% inline inspection at critical stages
Final Product Testing: Sharpness, sealing, sterility, and biocompatibility verification
Complete Traceability: Every product traceable to specific production batch and operator

Research & Development Innovation

Patent Portfolio: 5 proprietary patents including needle sharpening processes and catheter connection technology
R&D Investment: 8% of annual revenue dedicated to continuous technology upgrades
Academic Partnerships: Collaboration with 3 agricultural universities’ veterinary colleges for clinical trials
Development Cycle: 6-month timeline from concept to mass production

Global Market Presence

Export Performance Overview

Europe: 15 countries including Germany, France, Italy, Spain – 12 million units annually
Africa: 12 countries including South Africa, Kenya, Egypt – 8 million units annually
South America: 8 countries including Brazil, Argentina, Chile – 6 million units annually
Southeast Asia: 10 countries including Thailand, Vietnam, Malaysia – 10 million units annually
Middle East: 6 countries including UAE, Saudi Arabia, Turkey – 4 million units annually

Partnership Network

200+ Tier-1 Distributors: Coverage across major veterinary device distribution channels globally
Direct Hospital Supply: Established direct relationships with major European and American veterinary chains
Government Procurement: Active participation in multiple countries’ veterinary disease prevention projects
Industry Presence: Annual participation in top industry exhibitions including Germany’s Interzoo and America’s VMX

Clinical Applications

Species-Specific Applications

Canine Applications

Large Dogs (>25kg): 18G/20G for surgical anesthesia, emergency fluid therapy, chemotherapy
Medium Dogs (10-25kg): 20G/22G for routine infusion, vaccination, antibiotic treatment
Small Dogs (<10kg): 22G/24G for subcutaneous fluid therapy, nutritional support, precision medication

Feline Applications

Adult Cats: 22G/24G for spay/neuter surgery, kidney disease treatment, routine fluid therapy
Kittens: 24G/26G for vaccination, malnutrition treatment, minimally invasive procedures

Large Animal Applications

Cattle/Horses/Swine: 18G for high-volume vaccines, vitamin injections, antibiotic therapy
Sheep: 20G for deworming medications, nutritional supplements, disease prevention

Exotic Animal Applications

Birds: 26G for micro-dose drug delivery, nutritional fluid administration
Reptiles: 26G for precision medical care, vitamin supplementation

Medical Treatment Applications

Disease Treatment

Dermatological conditions with localized anti-inflammatory drug injection
Oral diseases including gingivitis treatment and oral surgery anesthesia
Internal medicine including kidney disease fluid therapy and diabetes insulin delivery
Surgical procedures with pre-operative anesthesia, intra-operative fluid support, post-operative pain management

Preventive Healthcare

Vaccination protocols including rabies, multi-valent, and specialized vaccines
Parasite prevention with internal and external deworming medications
Nutritional support through vitamin injections, electrolyte balance, and nutritional fluid therapy
Health monitoring via blood sampling and biochemical parameter testing

Supply Chain Management

Packaging & Logistics

Packaging Options

Medical sterile packaging with 5-year shelf life in individual Tyvek medical pouches
Bulk packaging: 100 units per box, 20 boxes per carton for efficient inventory management
Custom packaging available with client branding and multi-language labeling
Eco-friendly packaging using recyclable materials meeting international environmental standards

Distribution Network

Warehousing: 3 domestic distribution centers plus 5 international forward deployment warehouses
Logistics Partners: Strategic partnerships with DHL, FedEx, and UPS for reliable international shipping
Protective Packaging: Triple-layer protection with shock-absorbing foam, moisture barrier film, and reinforced cardboard
Insurance Coverage: Complete cargo insurance providing zero-risk transportation

Order Processing Workflow

Quote Response: Professional pricing within 2 hours including technical parameter comparisons
Sample Dispatch: 24-hour sample shipping after requirement confirmation
Order Processing: Production scheduling following contract signature
Production Monitoring: Real-time progress updates with synchronized quality reports
Shipping Notification: Detailed packing lists with real-time tracking updates
Delivery Confirmation: Customs clearance assistance and arrival status tracking

Technical Innovation & Quality Assurance

Materials Science Excellence

Needle Material: Medical-grade 304 stainless steel with superior corrosion resistance and extended service life
Catheter Material: Imported medical-grade TPU with excellent flexibility and biocompatibility
Connection Technology: Ultrasonic welding with >15N tensile strength testing
Surface Treatment: Electrochemical polishing + silicone coating achieving Ra≤0.2μm surface smoothness

Quality Testing Standards

Sharpness Testing: Penetration force testing equipment verification with standard <2.5N
Sealing Testing: 6kPa positive pressure maintained for 30 seconds without leakage
Sterility Testing: USP <71> standards with Sterility Assurance Level SAL 10⁻⁶
Biocompatibility: ISO 10993 standards covering cytotoxicity, sensitization, and irritation testing

Production Process Control

Incoming Material Inspection: Triple verification of chemical composition, physical properties, and microbial indicators
Environmental Monitoring: Real-time tracking of cleanliness, temperature, humidity, and particle count
Online Quality Control: Dedicated quality inspectors on each production line with step-by-step verification
Final Inspection: Four-point verification covering appearance, dimensions, performance, and packaging integrity

Global Service Network

Regional Market Strategy

European Market (12M units annually)

Primary markets: Germany, France, Italy, Spain, Netherlands
Partnership model: Regional exclusive distribution + direct hospital supply
Compliance: CE-MDR certification complete, meeting new EU regulations
Support: German, French, and Italian technical support teams

African Market (8M units annually)

Primary markets: South Africa, Kenya, Egypt, Nigeria, Morocco
Competitive advantage: Strong price competitiveness suitable for local market consumption levels
Logistics: Johannesburg hub providing pan-African coverage
Localization: English, French, and Arabic customer service support

South American Market (6M units annually)

Primary markets: Brazil, Argentina, Chile, Colombia
Product features: Tropical climate adaptation with enhanced moisture-resistant packaging
Certifications: ANVISA (Brazil) and ANMAT (Argentina) approved
Service team: Spanish and Portuguese professional service

Southeast Asian Market (10M units annually)

Primary markets: Thailand, Vietnam, Malaysia, Indonesia, Philippines
Market position: Top 3 market share, fastest-growing region
Price advantage: 40% lower than Japanese/Korean products with equivalent quality
Supply assurance: Singapore forward warehouse with 3-5 day rapid delivery

Middle Eastern Market (4M units annually)

Primary markets: UAE, Saudi Arabia, Turkey, Iran, Israel
Halal certification: Islamic Halal certification meeting religious requirements
Premium positioning: Primary supplier to high-end pet hospitals and private clinics
Cultural adaptation: Arabic product documentation adapted to local usage habits

Competitive Advantages

Cost Control Excellence

Vertical Integration: End-to-end production from raw materials to finished products with precise cost control
Economies of Scale: Bulk raw material purchasing reducing unit costs by 25%
Production Automation: Labor costs <15% of total with high product consistency
Lean Management: 12x annual inventory turnover with high capital efficiency

Technical Innovation Leadership

Patent Portfolio: 5 invention patents and 3 utility model patents
Process Improvement: Minimum 2 major process optimizations annually enhancing product performance
Material Advancement: Joint development of new biomaterials with suppliers
Equipment Upgrades: Annual 10% revenue investment in equipment modernization

Supply Chain Advantages

Supplier Management: 20 core suppliers with dual backup guarantees
Inventory Management: 2-month safety stock maintained for standard specifications
Emergency Response: Emergency orders scheduled for production within 48 hours
Risk Control: Raw material price locking mechanism avoiding cost volatility risks

Performance Testing Data

Key Performance Indicators

Penetration Success Rate: 99.2% (vs. industry average 95%)
Catheter Patency Rate: 99.8% (24-hour continuous infusion testing)
Needle Sharpness: Average penetration force 1.8N (standard requirement <2.5N)
Sealing Performance: 48-hour leak-free performance under 6kPa pressure
Biocompatibility: Complete ISO 10993 testing with zero cytotoxicity

Stability Testing Results

Accelerated Aging: 6 months at 55°C/75%RH with no significant performance degradation
Transportation Simulation: Vibration, drop, and compression testing with 100% packaging integrity
Extreme Environment: Stable performance across -20°C to 60°C temperature range
Long-term Storage: 5-year ambient storage with specifications meeting factory standards

Clinical Validation

Veterinary Clinical Feedback

Ease of Use Score: 4.8/5.0 (500+ veterinarian evaluations)
Reduced Animal Stress: 45% reduction in stress response compared to conventional needles
Improved Success Rate: 15% increase in first-attempt success rate vs. traditional products
Complication Reduction: <0.1% infection rate, <0.5% hematoma occurrence

Multi-Center Clinical Trial Data

Trial Scale: 20 veterinary hospitals, 2,000+ animal subjects
Study Duration: 6-month continuous use observation
Efficacy Validation: 99.5% infusion success rate with no serious adverse reactions
Safety Confirmation: <0.01% allergic reaction incidence

Partnership Models & Service Support

Collaboration Options

Distributor Partnerships

Regional exclusive distribution rights with market protection
Marketing support including product training, trade show support, and promotional materials
Inventory support programs with managed safety stock reducing capital pressure
Performance-based tiered rebate incentive programs

OEM/ODM Customization

Custom packaging with client branding and multi-language design
Specification customization for special requirements
Color customization for catheters and packaging
Flexible minimum orders: 50K units for OEM, 100K units for ODM

Cross-Border E-commerce Support

Retail-friendly packaging in 1, 5, and 10-unit configurations
Compliance labeling meeting various countries’ import requirements
Complete product certification documentation
Logistics optimization through partnerships with cross-border logistics providers

Technical Service Support

Training Services

Product usage training covering standard operating procedures, precautions, and troubleshooting
Sales skills training including product highlights, competitive comparisons, and objection handling
24/7 accessible online training platform with video resources
On-site training with technical engineer visits

Technical Consulting

Product selection guidance recommending optimal specifications based on target animals and applications
Usage support through 24-hour multilingual technical hotline
Quality issue resolution with 48-hour response and 7-day solution timeline
Continuous improvement through customer feedback collection

Investment Return Analysis

Distributor Profit Model

Gross Margin: Typical 45-65% margins exceeding industry averages
Inventory Turnover: High-demand products with 45-day average inventory cycles
Market Growth: Average 25% annual sales growth with strong investment returns
Risk Management: Stable product quality with <0.5% return rate

Market Opportunity Forecast

Global Market Size: $5 billion veterinary injection device market with 8% annual growth
Segment Opportunity: IV catheters represent 15% market share (~$750 million market)
Emerging Market Potential: 15%+ growth rates in Asian, African, and South American markets
Technology Upgrade Demand: Traditional product migration to premium products creating significant value enhancement opportunities

Why Choose Our Manufacturing Partnership

✅ Direct Factory Pricing – Eliminate middleman costs with competitive manufacturer pricing
✅ Proven Quality – 15 years of manufacturing excellence with international certifications
✅ Global Reach – Trusted in 50+ countries with established distribution networks
✅ Professional Support – 24/7 multilingual technical and customer service
✅ Flexible Partnership – Multiple collaboration models from distribution to OEM/ODM
✅ Innovation Leadership – Continuous R&D investment ensuring cutting-edge technology

Contact us today to discuss partnership opportunities and secure your competitive advantage in the veterinary medical device market.

Additional information

Large Dogs (>25kg)	Large Dogs (>25kg)
Medium Dogs (10-25kg)	20G/22G

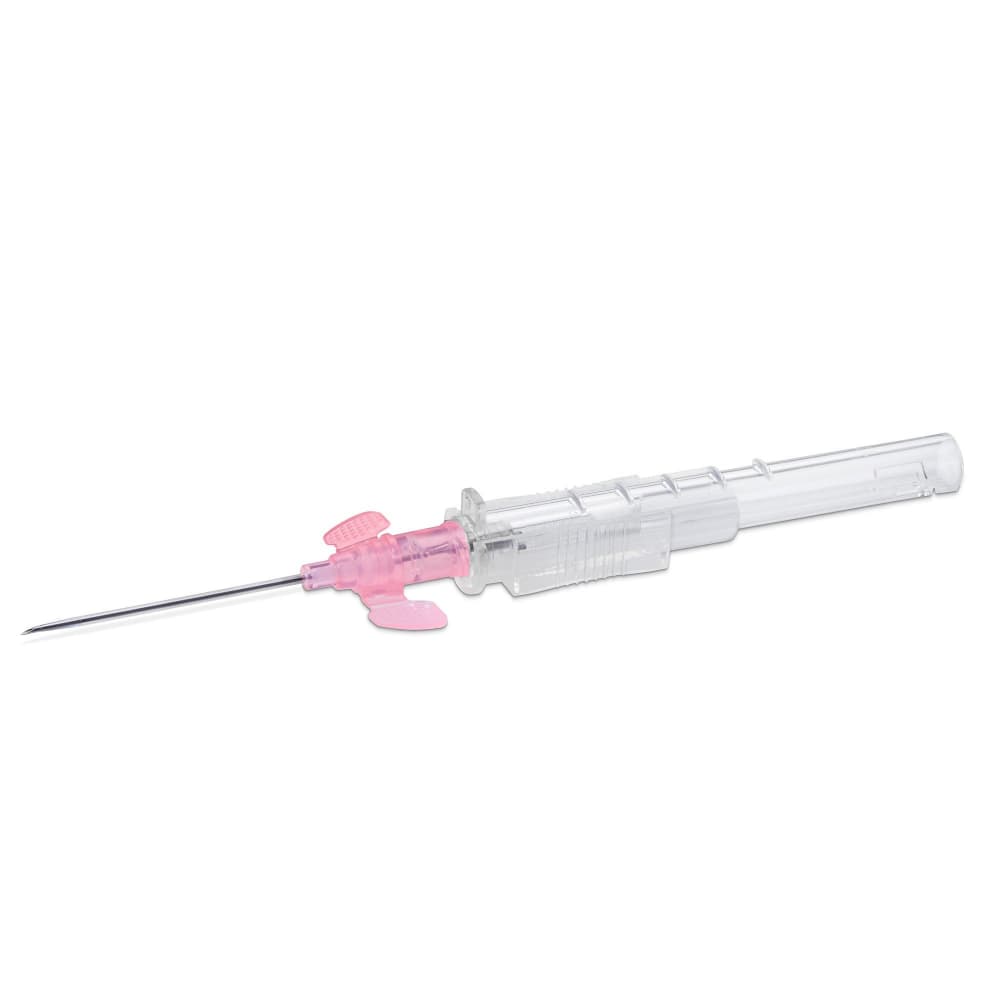

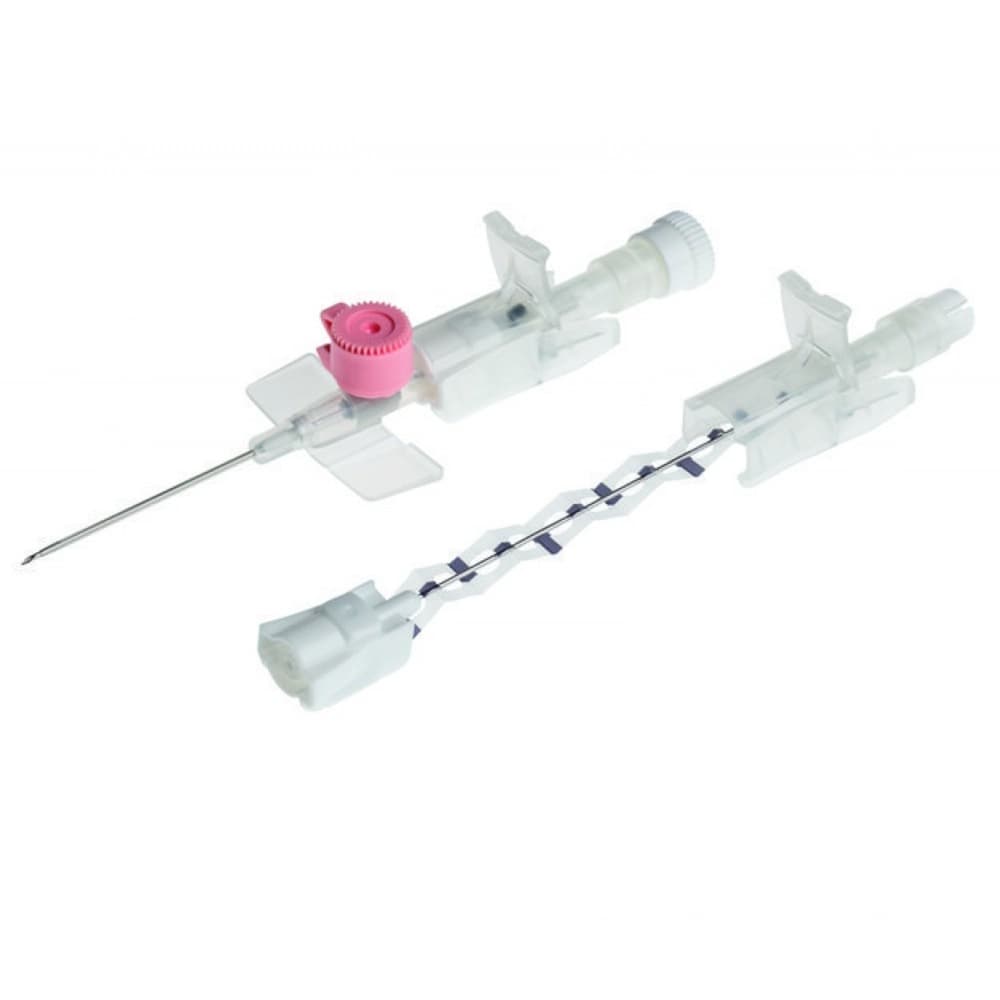

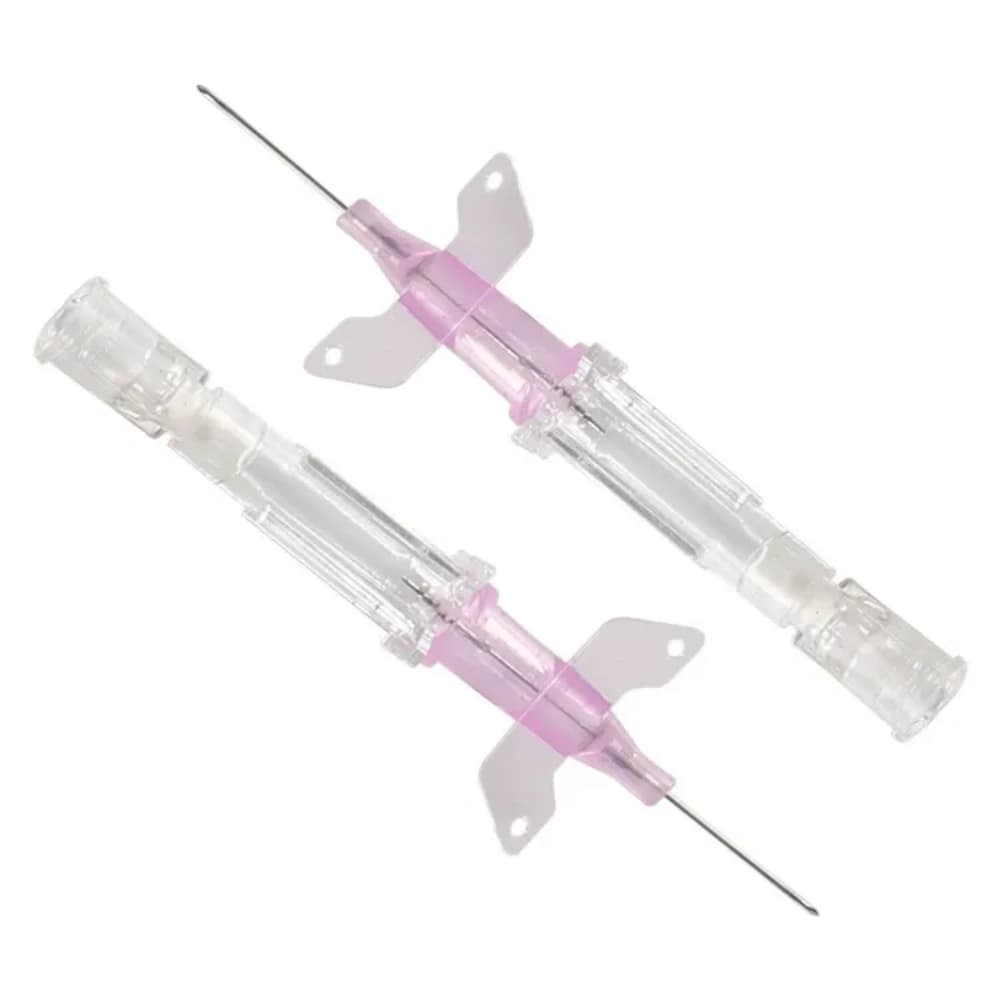

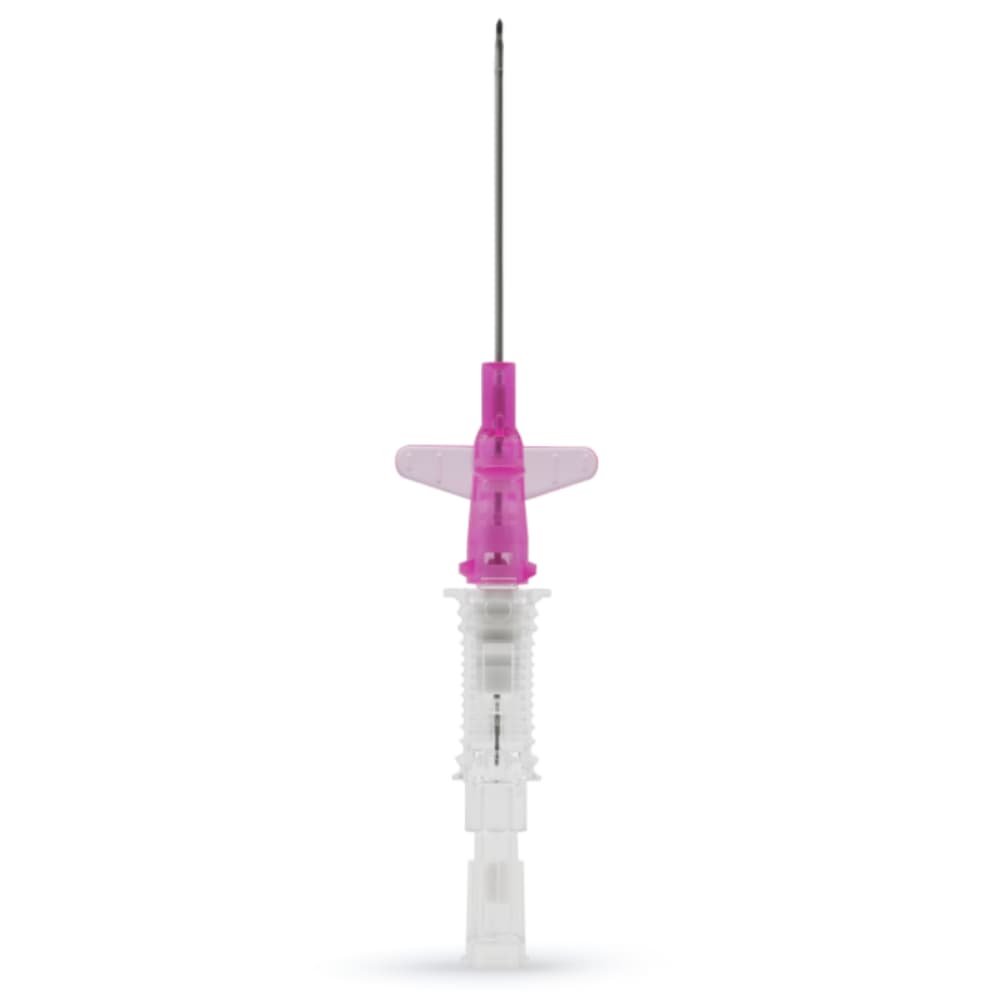

Professional Veterinary IV Catheters
